Kuruma Zamanı Tayin Cihazı


DRYING TIME RECORDER

Product Description

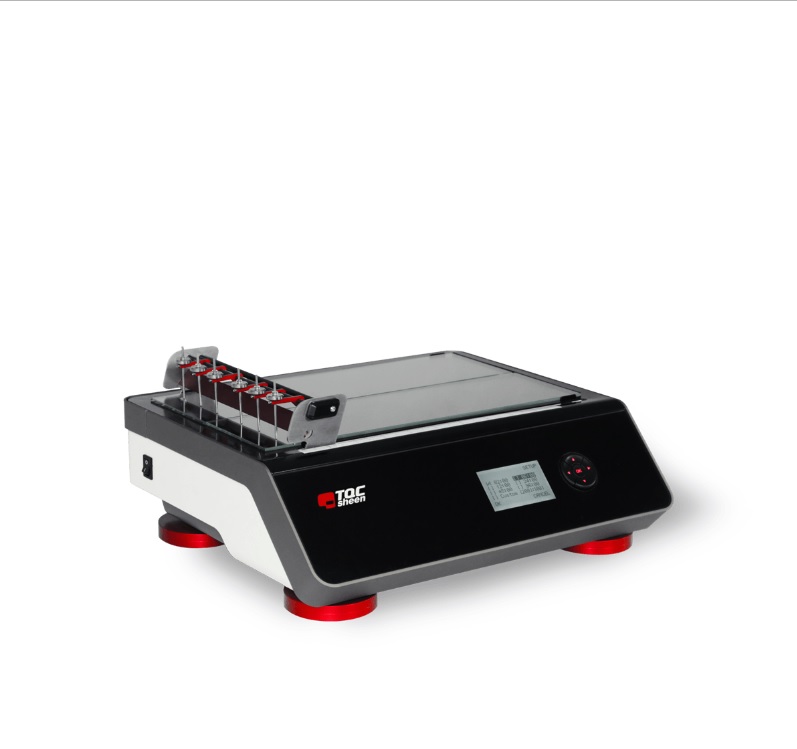

The new TQC Drying Time Recorder is a fully digitally controlled machine
that operates conform the BK (Beck Koller) method and meets ASTM D5895,
ISO 9117-4 and DIN EN 14022.

Defining the final result or checking intermediate stages is very easy by
means of the clear digital display and the intuitive controller.

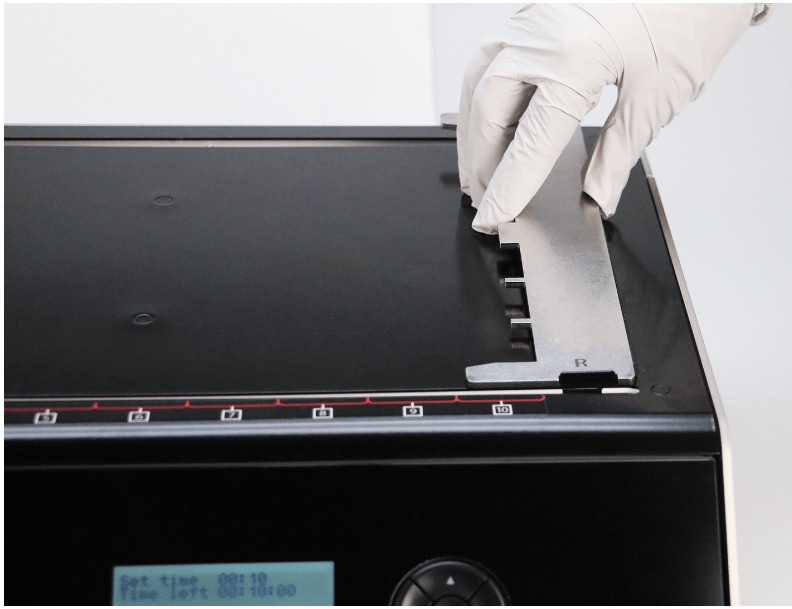

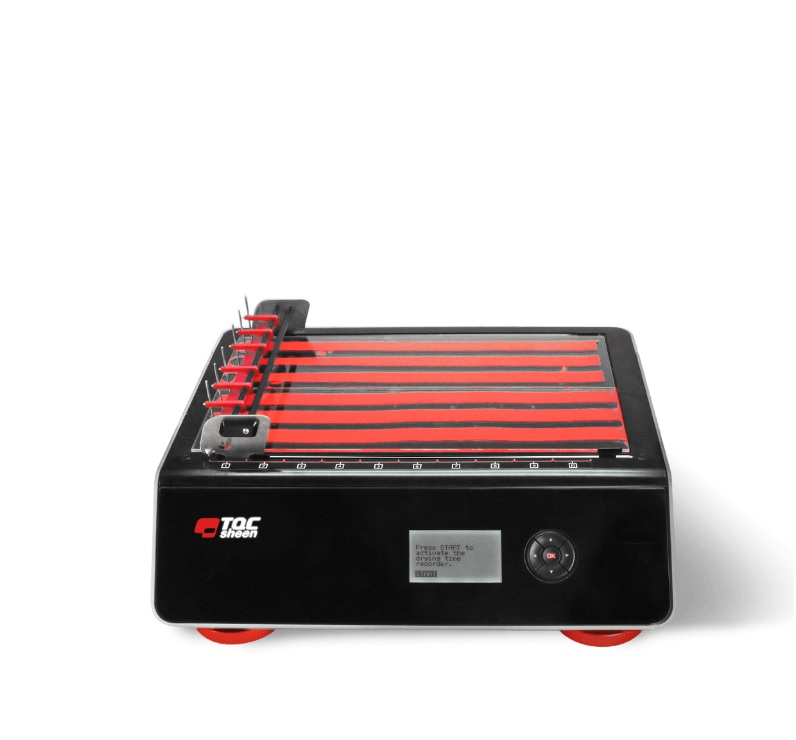

The compact machine has six tracks, and comes with two robust and
reusable glass beds of 100 x 350 x 3 mm. Optional are six narrow glass
beds in special adapters.
The front panel of the TQC Drying Time Recorder is made out of hardened
glass, which is easy to clean and protects the display underneath it.
The TQC Drying Time Recorder is powered by a safe 24 V DC power supply.

Temperature-friendly design
The possibility to perform tests at temperatures as low as -20 °C is unique.
The drive system is lubricant free, so there is no risk of lubricants that
thicken at lower temperatures. The display is heated which enhances
menu visibility at lower temperatures. These design features result in
a wide operatingtemperature range from -20°C to +70°C (non-condensing),
which makes itpossible to perform tests in climate chambers.

Broad and flexible time range
A broad and flexible time range can be set varying from 1 minute up to 200 hours. This makes the TQC Drying Time Recorder suitable for fast drying waterborne coatings as well as very slow drying paints that may need days to dry.

Features
• Flexible travel times, digitally adjustable from 1min to 200 hours
• Digitally controlled, fully flexible
• Check intermediate and final results on the machine’s display
• Heated display enhances menu visibility at lower temperatures
• Lubricant free drive system
• Wide operating temperature range from -20°C to +70°C, also suitable for tests in climate chambers
• 6 tracks
• Triple I operating interface: Intelligent Illumination Indicator; just those keys that are active are illuminated
• Very accurate: < 1% of set time
• Glass front panel eases cleaning and protects the display
• Reusable glass beds
• Safe 24 V DC power supply

Standards
ASTM D5895, ISO 9117-4 and DIN EN 14022. Read the appropriate standard for a correct execution of the test.

Specifications
Operating temperature : -20°C to +70°C / -4°F to 158°F
     (non-condensing)
Drying time range : 1 min to 200 hours
Time accuracy : < 1% of set time
Maximum track length : 300 mm
Maximum number of tracks : 6

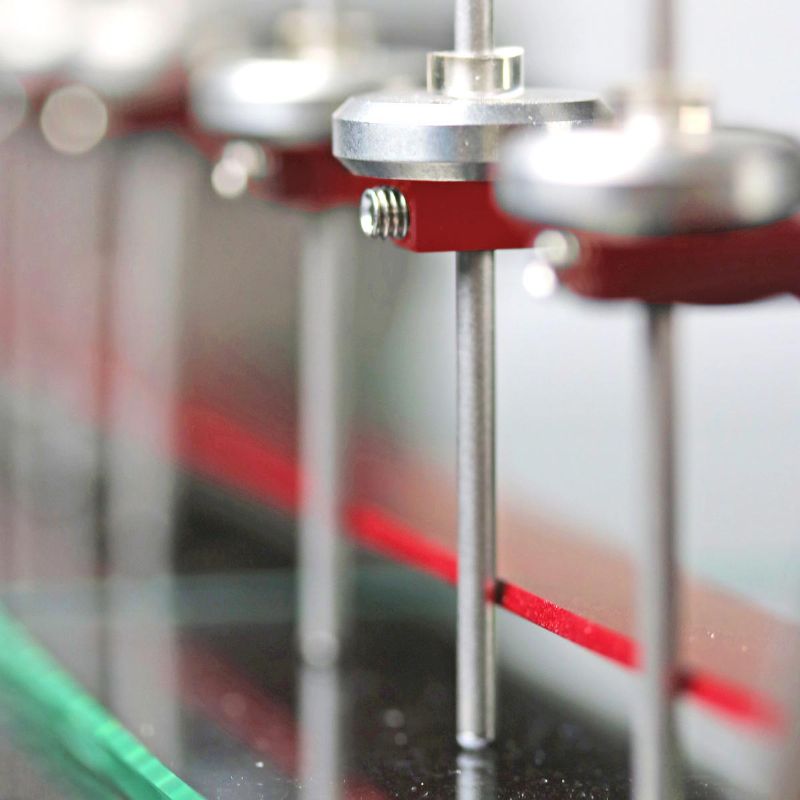

Force per needle : 3.5 g / 0.03 N
Weight of additional weights : 5 g
Diameter of needle : 2 mm
Radius of needle : 1 mm
Material : Stainless steel, powdercoated
    steel, anodised aluminium,
    nylon, glass

Test beds
2 x triple track 350 mm X 100 mm X 3 mm glass bed (supplied), or
6 x solo track 305 mm X 25 mm X 3 mm glass bed, or
Custom bed; max dimensions W 200mm x L 400mm* x H 8mm

* - Test surface is always 300 mm in length
  - 400 mm length max. without extra support.
    Longer panels need an extra 125mm high support.

Dimensions and Weight
Depth : 335 mm / 13.18 in
Width : 400 mm / 15.74 in
Height : 190 mm / 7.48 in
Net weight : 9.5 kg

Basic Unit
Power Supply : 24 VDC
Power consumption : Max. 40 Watt

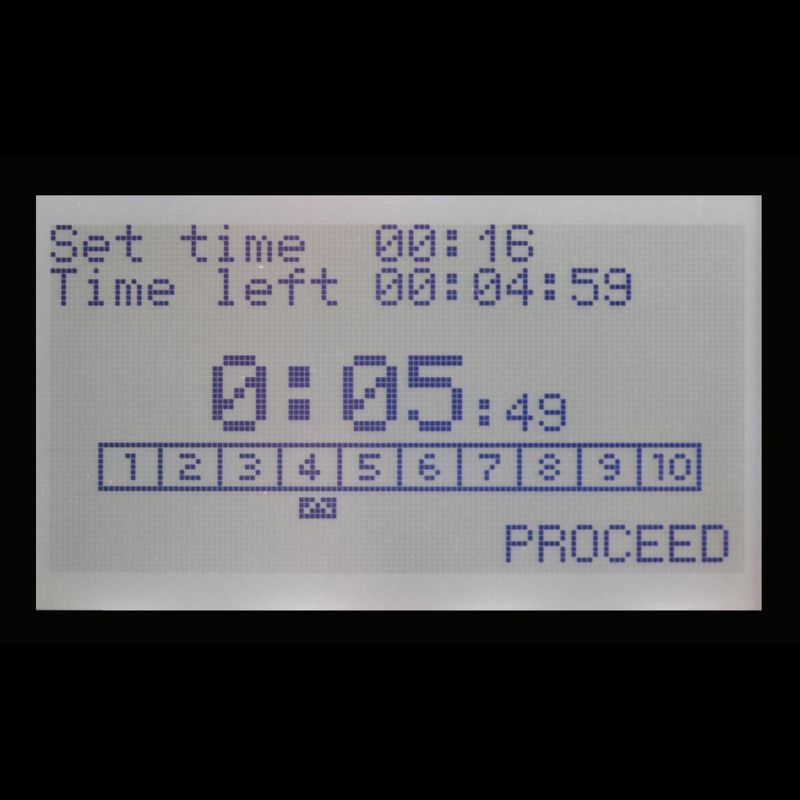

Display : 128 x 64 pixels graphical LCD,
    70 mm x 40 mm, white
    illuminated
Menu languages : English
User input method : Illuminated tactile navigation
    button with Triple I function
