PLASTIC WET FILM COMB
PRODUCT DESCRIPTION

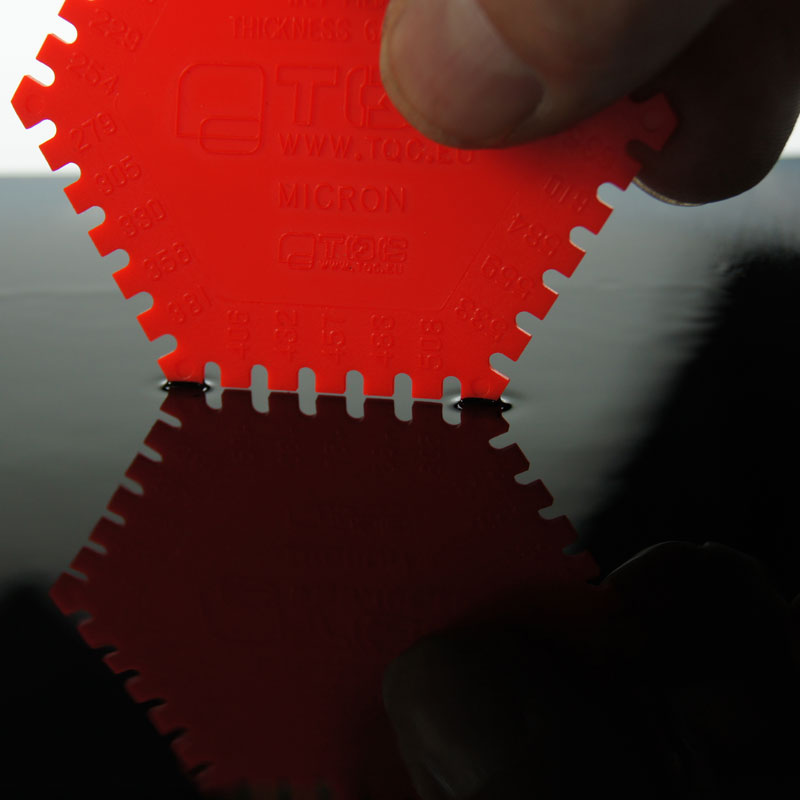

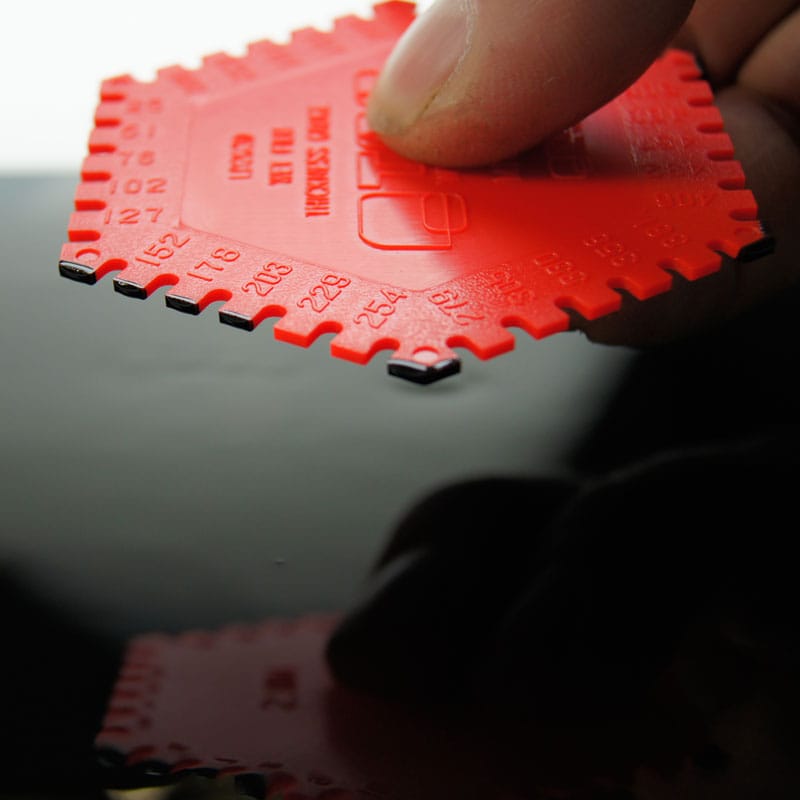

The TQC Wet Film Comb made of plastic, to measure wet film thickness
between 25 and 900μm. The TQC Wet Film Comb is designed as
a disposable thickness gauge. It can be kept as a record of wet film
thickness measurement for ISO or customer requirements. One side
of the comb measures the wet film thickness in μm (30 steps between
25 and 900μm)., the other side measures in mills (30 steps between
1 and 35 mils)
One set TQC Wet Film Combs contains 500 pieces.
ORDERING INFORMATION
LD2020 Plastic wet film comb, 500 pieces
SPECIFICATIONS
Front in microns
side 1 : 25, 51, 76, 102, 127
side 2 : 152, 178, 203, 229, 254
side 3 : 279, 305, 330, 356, 381
side 4 : 406, 432, 457, 483, 508
side 5 : 533, 559, 584, 610, 635
side 6 : 660, 737, 787, 832, 900
Back in mils
side 1 : 1, 2,3, 4, 5
side 2 : 6, 7, 8, 9, 10
side 3 : 11, 12, 13, 14, 15
side 4 : 16, 17, 18, 19, 20
side 5 : 21, 22, 23, 24, 25
side 6 : 27, 29, 31, 33, 35
|
