WIRE BAR COATER

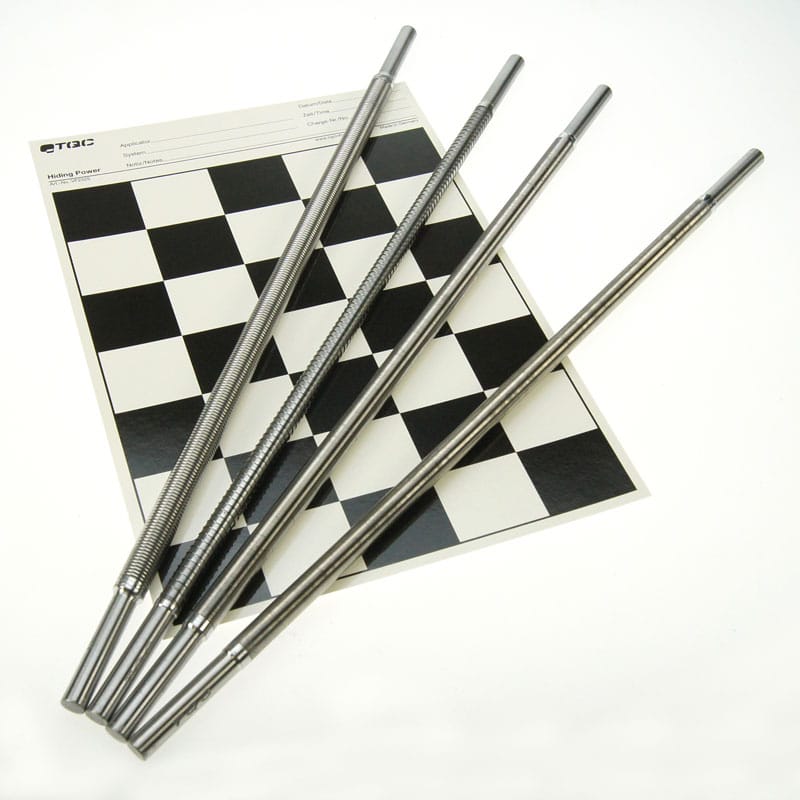

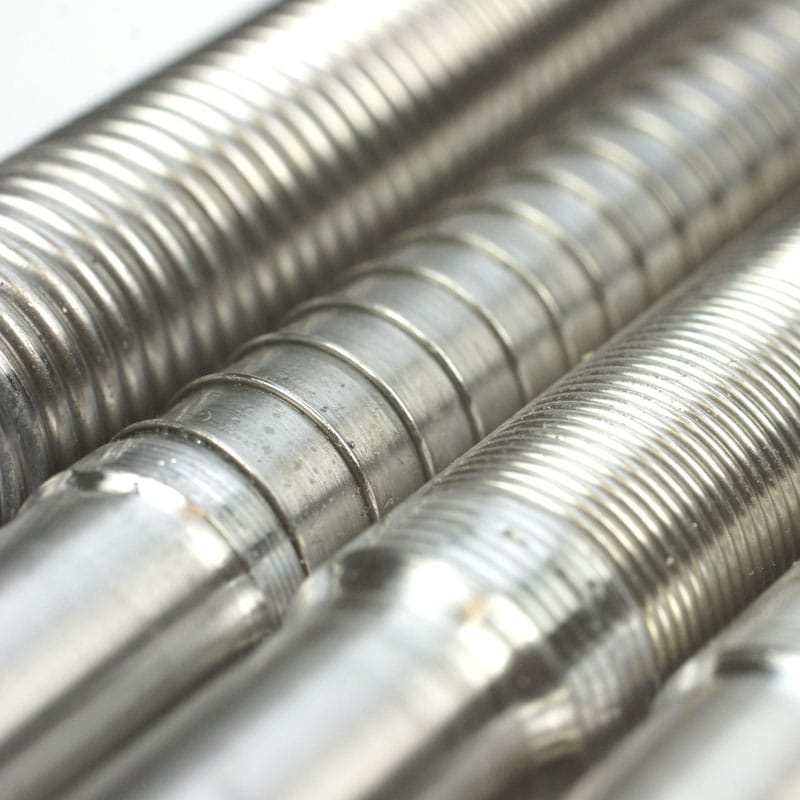

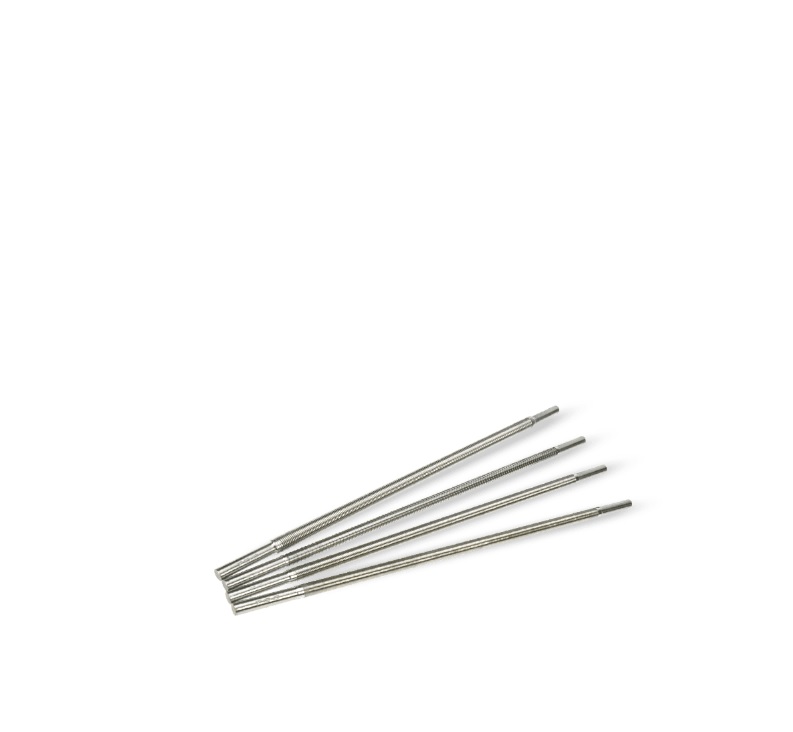

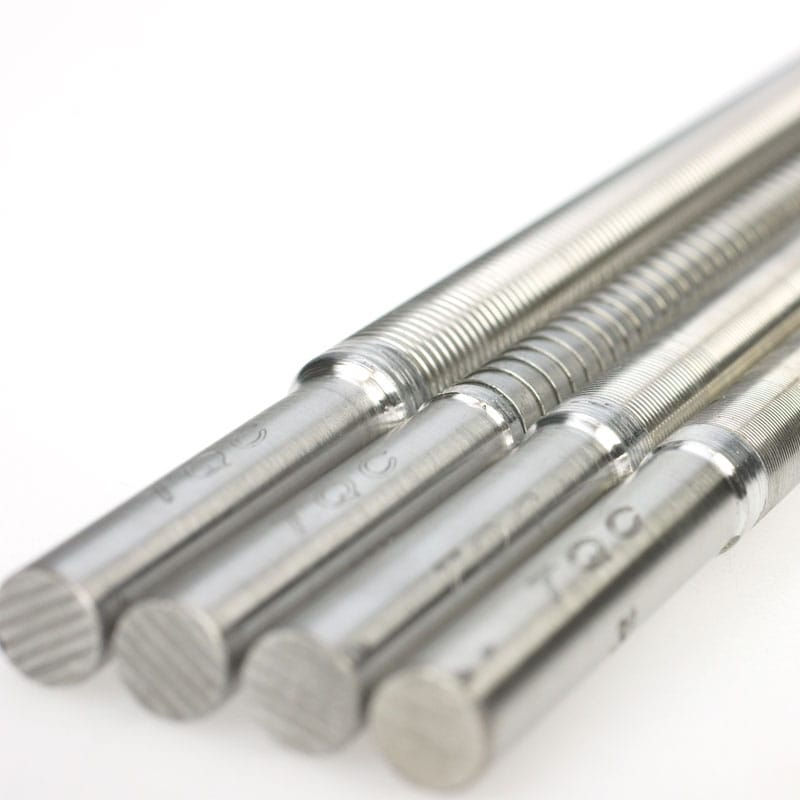

Stainless steel Spiral applicators, with a film width of 180, 230 or 320 mm,

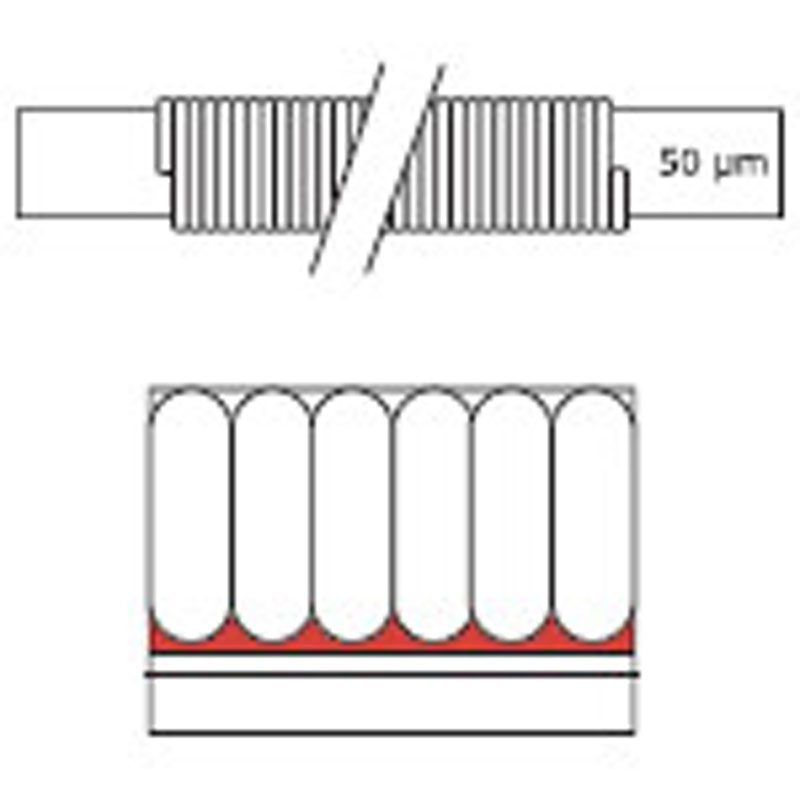

are round bars, tightly wound with stainless steel wire.The diameter of the
wire, in the wound form, regulates the thickness of the coating. The Spiral

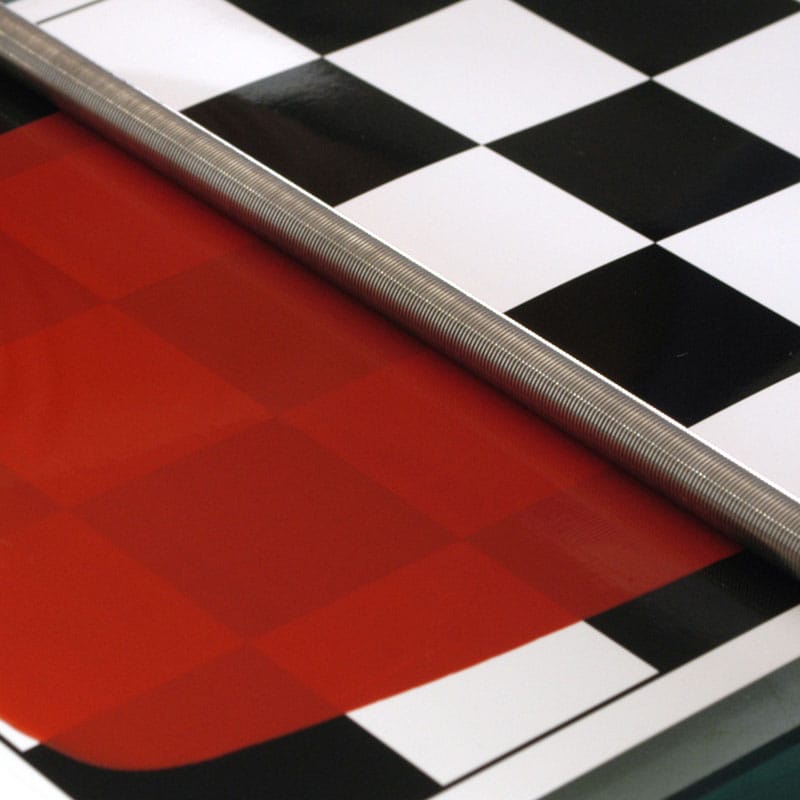

applicator is ideal for application of (thin) film of thin materials such as sheet
of paper or plastic. Also to be used with automatic film applicators.
This type of spiral bar coater fits on the TQC / TQC Sheen Automatic Film
Applicator Models, sold from 2012 and on. If you have an older model
TQC Automatic Film Applicator, another type of spiral film applicator
(starting with article code VF….) has to be used. Please contact us
for availability.
BUSINESS
Paint laboratory
STANDARDS
Look up the appropriate standard for a correct execution of the test.
SCOPE OF SUPPLY
The Spiral Bar coater comes in a tube-type case.
SPECIFICATIONS
| Material |
: |
Stainless steel |
| Available in |
: |
sizes from 4 to 300 μm |
| Straightness |
: |
< 50 μm |
ORDERING INFORMATION
| |
Film width |
| Film thickness |
180mm |
230mm |
320mm |
| 0 μm |
SH0632 |
AB3742 |
AB3070 |
| 4 μm |
SH0168 |
SB3720 |
AB3050 |
| 6 μm |
SH0232 |
AB3721 |
AB3051 |
| 8 μm |
SH0262 |
AB3722 |
AB3052 |
| 10 μm |
SH0631 |
AB3723 |
AB3053 |
| 12 μm |
SH0676 |
AB3724 |
AB3054 |
| 14 μm |
SH0700 |
AB3725 |
AB3055 |
| 16 μm |
SH0728 |
AB3726 |
AB3056 |
| 18 μm |
SH0751 |
AB3743 |
AB3082 |
| 20 μm |
SH0799 |
AB3727 |
AB3057 |
| 24 μm |
SH0856 |
AB3728 |
AB3058 |
| 26 μm |
SH0897 |
AB3744 |
AB3083 |
| 28 μm |
SH0921 |
AB3745 |
AB3084 |
| 30 μm |
SH0941 |
AB3729 |
AB3059 |
| 32 μm |
SH0965 |
AB3746 |
AB3085 |
| 34 μm |
SH0978 |
AB3730 |
AB3060 |
| 36 μm |
SH0994 |
AB3747 |
AB3086 |
| 38 μm |
SH1018 |
AB3731 |
AB3061 |
| 40 μm |
SH1042 |
AB3732 |
AB3062 |
| 46 μm |
SH1091 |
AB3748 |
AB3087 |
| 48 μm |
SH8007 |
AB3749 |
AB3088 |
| 50 μm |
SH1144 |
AB3733 |
AB3063 |
| 56 μm |
SH1216 |
AB3734 |
AB3064 |
| 60 μm |
SH1231 |
AB3735 |
AB3065 |
| 66 μm |
SH1266 |
AB3750 |
AB3089 |
| 70 μm |
SH1280 |
AB3751 |
AB3094 |
| 76 μm |
SH1314 |
AB3736 |
AB3066 |
| 80 μm |
SH1341 |
AB3752 |
AB3095 |
| 88 μm |
SH1372 |
AB3753 |
AB3096 |
| 100 μm |
SH0326 |
AB3736 |
AB3067 |
| 120 μm |
SH0797 |
AB3738 |
AB3068 |
| 128 μm |
SH0919 |
AB3754 |
AB3097 |
| 150 μm |
SH1686 |
AB3739 |
AB3072 |
| 200 μm |
SH0329 |
AB3740 |
AB3069 |
| 300 μm |
SH0338 |
AB3755 |
AB3099 |
| Custom |
SH2005 |
AB3741 |
AB3071 |
ACCESSORIES
| VF1601 |
|
Application Table 380 x 230 mm |
| VF1602 |
|
Application Table 230 x 160 mm |
| VF2343 |
|
Test charts A6, White/Black B+, with optical brightner, 250pcs |
| VF2344 |
|
Test charts A5, White/Black B+, with optical brightner, 250pcs |
| VF2345 |
|
Test charts A4, White/Black B+, with optical brightner, 250pcs |
| VF2346 |
|
Test charts A5, Black/White chequered B+, with optical brightner, 250pcs |
| VF2347 |
|
Test charts A4, Black/White chequered B+, with optical brightner, 250pcs |
| VF2354 |
|
Test charts A3, Black/White chequered B+, with optical brightner, 250pcs |
| VF2317 |
|
Test charts A6, White/Black B-, without optical brightner, 250pcs |
| VF2319 |
|
Test charts A5, White/Black B-, without optical brightner, 250pcs |
| VF2321 |
|
Test charts A4, White/Black B-, without optical brightner, 250pcs |
| VF2323 |
|
Test charts A5, Black/White chequered B-, without optical brightner, 250pcs |
| VF2325 |
|
Test charts A4, Black/White chequered B-, without optical brightner, 250pcs |
|
