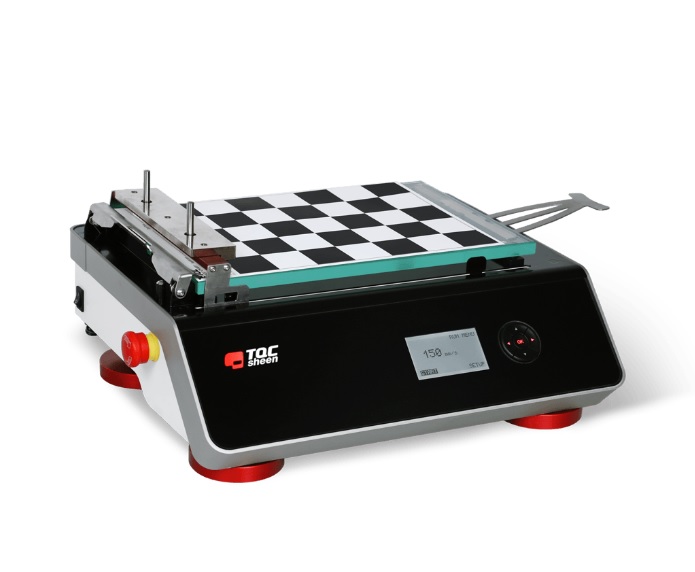

TQC AUTOMATIC FILM APPLICATOR COMPACT
(AB3650, AB3655)
Product Description
The AFA Compact is an entry level film applicator that accepts charts up to
A4 size. Application speed can be set from 1 to 150 mm/s. The Compact
issuitable for both wire bar applicators and block applicators. Operating is
easy through the standard TQC operating interface. The AFA Compact is

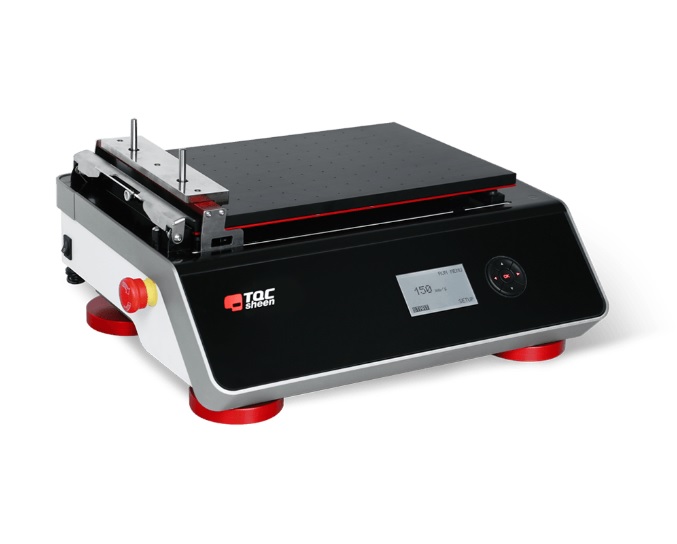

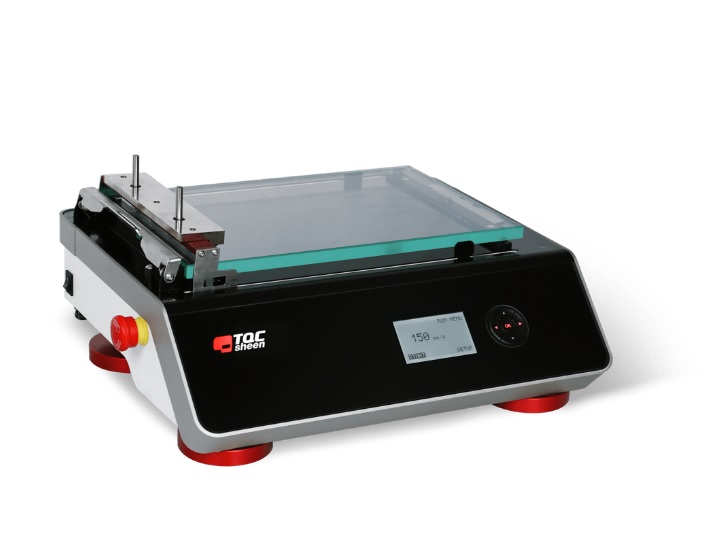

available with a glass bed or a perforated vacuum bed.
Features
• Charts up to A4 size max.
• Application speed 1 / 150 mm/s
• Application speed infinitely adjustable
• Compatible with a large range of application tools
• Easy intuitive operating interface with Triple i Control
(Intelligent Illumination Interface)
• Removable Drip Pan
• Safe 24V powered
Business
Coating Laboratories, Paint Production, Surface Finishing, Powder Coating.
Standards
ASTM D823
Scope of Supply
• TQC Automatic Film Applicator Compact
• 24V Adapter
• Paper Holder
• Drip Pan
• Weight
• Manual
Only supplied with AB3650:
• Glass Bed
• Rubber Mat |
Only supplied with AB3655:
• Vacuum Bed
• Hose (1m) |
| |
|
| Specifications |
|
|
| |
|
|
| Technical Data |
|
|
| Traverse speed |
: |
1 - 150 mm/s / 0.03 - 5.90 in |
| Traverse speed accuracy |
: |
< 1% |
| Stroke length |
: |
250 mm / 9.84 in |
| Stroke length accuracy |
: |
< 1 mm (0,025 mm/step) /< 0.03 in |
| Max. test chart size |
: |
DIN A4 |
| Max. test substrate thickness |
: |
8 mm / 0.31 in incl. coating |
| Max. width alternative film applicators |
: |
200 mm / 7.87 in |
| Max. test panel size (all models)* |
: |
300 mm x 200 mm x 8 mm / |
| (heigth is incl. coating) |
|
11.81 x 7.87 x 0.31 in |
| Max. height alternative film |
: |
40 mm / 1.57 in |
| applicators |
|
|
| Min. Wire bar length |
: |
> 220 mm / > 8.66 in |
| Wire bar diameter |
: |
6 - 12,7 mm / 0.23 - 0.5 in |
| Volume drip pan |
: |
30 ml |
| |
|
|
| Drawn down speeds |
: |
1 - 150 mm/s free selectable |
| Min. vacuum |
: |
-100 mbar required for |
| |
|
vacuum model |
| Diameter vacuum holes |
: |
1.3 mm / 0.05 in |
| Distance between vacuum holes |
: |
22 mm / 0.86 in |
| Number of vacuum holes |
: |
117 |
| Vacuum connection |
: |
6 mm / 0.23 in quick connect |
| |
|
|
| Dimensions and Weight |
|
|
| Depth |
: |
335 mm / 13.18 in |
| Width |
: |
400 mm / 15.74 in |
| Height |
: |
190 mm / 7.48 in |
| Net weight |
: |
12,5 kg / 27.55 lbs |
| |
|
|
| Basic Unit |
|
|
| Power Supply |
: |
24 VDC |
| Power consumption |
: |
Max. 40 Watt |
| Display |
: |
128 x 64 pixels graphic, |
| |
|
70 mm x 40 mm white illuminated |
| Menu languages |
: |
English |
| Control |
: |
5-key navigation switch |
| |
|
|
Ordering Information
| AB3650 |
: |
TQC Automatic Film Applicator Compact (Glass Bed) |
| AB3655 |
: |
TQC Automatic Film Applicator Compact (Vacuum Bed) |
Accessories
| |
|
Vacuum Pumps |
| AB3675 |
: |
Vacuum Pump, 23 l/min, 1750rpm 115VAC |
| AB3676 |
: |
Vacuum Pump, 18 l/min, 1450rpm 230VAC |
| |
|
|
| |
|
Optional Weight |
| AB3680 |
: |
Optional Weight 250 g |
| |
|
|
| |
|
Wire Bar Coaters |
| AB3720 |
: |
Wire Bar Coater 4μm, film width 230mm, total width 290mm |
| AB3721 |
: |
Wire Bar Coater 6μm, film width 230mm, total width 290mm |
| AB3722 |
: |
Wire Bar Coater 8μm, film width 230mm, total width 290mm |
| AB3723 |
: |
Wire Bar Coater 10μm, film width 230mm, total width 290mm |
| AB3724 |
: |
Wire Bar Coater 12μm, film width 230mm, total width 290mm |
| AB3725 |
: |
Wire Bar Coater 14μm, film width 230mm, total width 290mm |
| AB3726 |
: |
Wire Bar Coater 16μm, film width 230mm, total width 290mm |
| AB3727 |
: |
Wire Bar Coater 20μm, film width 230mm, total width 290mm |
| AB3728 |
: |
Wire Bar Coater 24μm, film width 230mm, total width 290mm |
| AB3729 |
: |
Wire Bar Coater 30μm, film width 230mm, total width 290mm |
| AB3730 |
: |
Wire Bar Coater 34μm, film width 230mm, total width 290mm |
| AB3731 |
: |
Wire Bar Coater 38μm, film width 230mm, total width 290mm |
| AB3732 |
: |
Wire Bar Coater 40μm, film width 230mm, total width 290mm |
| AB3733 |
: |
Wire Bar Coater 50μm, film width 230mm, total width 290mm |
| AB3734 |
: |
Wire Bar Coater 56μm, film width 230mm, total width 290mm |
| AB3735 |
: |
Wire Bar Coater 60μm, film width 230mm, total width 290mm |
| AB3736 |
: |
Wire Bar Coater 76μm, film width 230mm, total width 290mm |
| AB3737 |
: |
Wire Bar Coater 100μm, film width 230mm, total width 290mm |
| AB3738 |
: |
Wire Bar Coater 120μm, film width 230mm, total width 290mm |
| AB3739 |
: |
Wire Bar Coater 150μm, film width 230mm, total width 290mm |
| AB3740 |
: |
Wire Bar Coater 200μm, film width 230mm, total width 290mm |
| AB3741 |
: |
Wire Bar Coater microns on request, film width 230mm, |
| |
|
total width 290mm |
| AB3742 |
: |
Wire Bar Coater plain polished, film width 230mm, |
| |
|
total width 290mm |
Spare Parts
| AB3670 |
: |
Spare Glass Bed for Automatic Film Applicator Compact |
| AB3667 |
: |
Spare Vacuum Bed for Automatic Film Applicator Compact |
| AB3670 |
: |
Spare Glass Bed for Automatic Film Applicator Compact |
| AB3657 |
: |
Spare Drip Pan |
| AB3662 |
: |
Spare Paper Support |
A large range of applicators are suitable for the TQC Automatic Film Applicator Compact. For more information about the applicators we refer you to our website.
|
