CMEX 2 - Dijital Beton Nem Ölçüm Cihazı

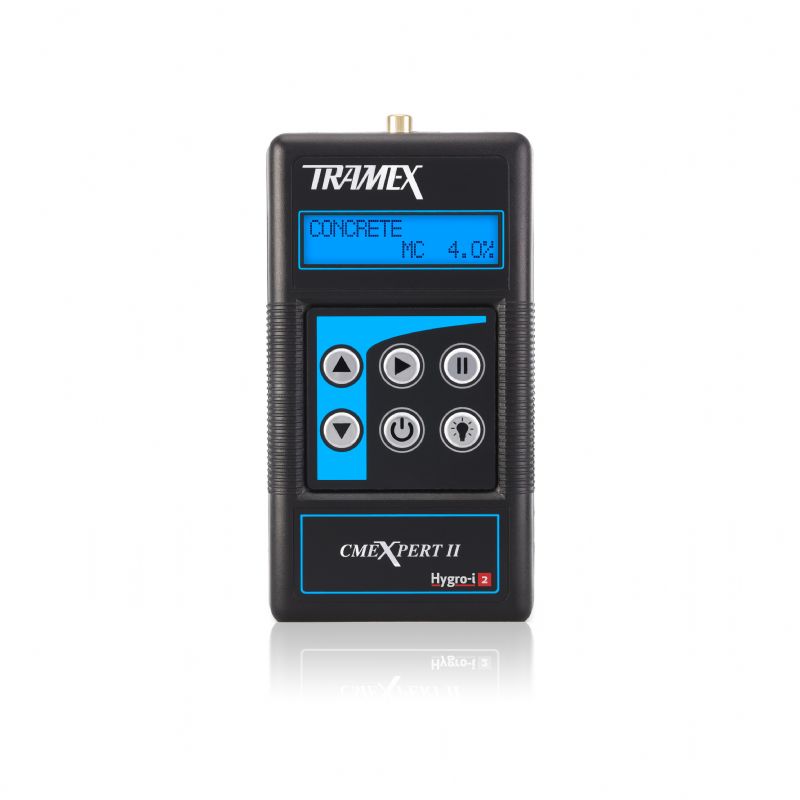

TRAMEX CMEX - II  DIGITAL MOISTURE METER FOR CONCRETE

Instant and non-destructive moisture content tests per international
standard ASTM F2659 with the CMEX II, a digital version of the
CME4 handheld electronic moisture meter, designed for the instant
and precise measurement of moisture content in concrete slabs,
featuring a Carbide Method equivalent scale for concrete screeds
and giving comparative readings in other cementitious floor screeds.
Incorporating plug-in ports for the optional Hygro-i2 ® relative humidity
probe and heavy-duty pin-type wood probes, this meter transforms
into the ideal all-in-one instrument for the flooring professional.

Features
*Measures up to 6.9% moisture content in concrete.
*Non-destructive CM Carbide Method moisture
 content equivalent readings.
*Large clear backlit digital display.
*Hold function “freezes” meter reading when inspecting areas
 where the meter face is not visible, and for easy recording of data.
*Multi-language options.
*7% to 40% Moisture Content measurement in Wood using
 Pin-type probe attachments. (optional)
*Attaches to a reusable relative humidity Hygro-i2® probe for in
 situ and hood testing of concrete per BS 8201, 8203, 5325 and
 ASTM F2170. (optional)

The CMEX II detects and evaluates the moisture conditions within the slab or screed by non-destructively
measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under
test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the
amount of moisture present in the material. The CMEX II determines the strength of the current and converts
this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds,
displayed on a large clear digital dial.

Hygrometer mode:
When the optional Tramex Hygro-i2 ® relative humidity probe is plugged into the CMEX II, the instrument
automatically changes to Hygrometer Mode, allowing for in situ relative humidity (RH) testing of floor slabs
per BS 8201, 8203, 5325 and ASTM F2170, as well as ambient conditions of temperature, relative humidity,
dew point and mixing ratios. This resilient probe is reusable and can be checked regularly for calibration.

Wood pin-type probe mode:
In Pin-probe mode by plugging in the optional handheld or hammer probe the CMEX II becomes a resistance
type pin meter for determining the moisture content of wood and wood based products. The CMEX II gives
moisture content readings from 7% to 40% in wood. A species adjustment table and a temperature adjustment
chart are supplied for precise readings in woods of varying densities and readings taken in various temperatures.

Specification :
Size                       : 150mm x 85mm x 38mm ( 6" x 3.5" x 1.5")
Weight                   : 319g (11.25oz)
Construction           : ABS Body
Power                    : 9 volt PP3 Battery (included)
Display                   : Digital / Backlit
Depth of penetration in concrete  : approx. 20mm (.")

Measuring range:
Moisture content for Concrete                                     : 0 to 6.9 %
Carbide Method moisture equivalent for Concrete          : 0 to 4.3
Comparative for Gypsum floor screed                           : 0 to 10
Reference scale                                                          : 0 to 100
Relative Humidity                                                        : 0 to 99% with optional Hygro-i ® probe
Humidity accuracy                                                       : 0% to 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood                                           : 7 to 40 % with optional wood pin probes
