BAKER FILM APPLICATORS
PRODUCT DESCRIPTION

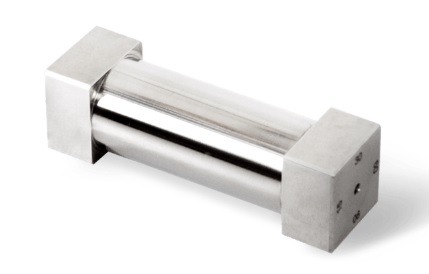

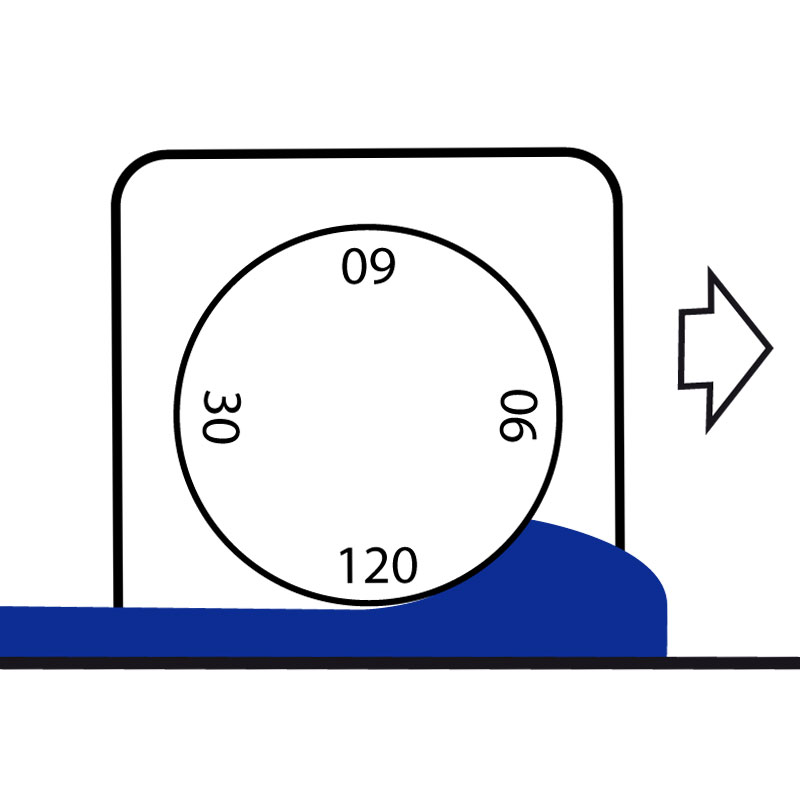

Cylindrical film applicator with 4 application sides for applicating paint-films of
4 different pre-defined thicknesses. The Baker applicator’s are available in film
width 60 mm and 80 mm and are suitable for applying a host of different products
onto flat and relatively solid substrates. Since it is made out of high-grade stainless
steel, the Baker Film Applicator will not be affected by acid or base elements.
BUSINESS
Coating Laboratories, Paint Production
STANDARDS
ASTM D 3022 ASTM D 823
Look up the standard for a correct execution of the test.
SCOPE OF SUPPLY
· Baker Film Applicator
· Protective plastic case
· Calibration certificate
ORDERING INFORMATION
VF2145 Baker applicator 60mm, 15/30/60/90µm
VF2146 Baker applicator 60mm, 30/60/90/120µm
VF2147 Baker applicator 60mm, 50/100/150/200µm
VF1500 Baker film applicator 80mm, 15/30/60/90µm
VF1501 Baker film applicator 80mm, 30/60/90/120µm
VF1502 Baker film applicator 80mm, 50/100/150/200µm
VF1510 Baker film applicator width 60mm, 4 gaps as desired , max. gap size 2000µm
VF1515 Baker film applicator width 80mm, 4 gaps as desired, max. gap size: 2000µm
VF1560 Baker film applicator width 80mm, 2x90µm / 2x150µm
(special diameter: 18mm instead of 27mm)
VF1520 Baker film applicator width 100mm, 4 gaps as desired, max. gap size 2000µm
VF1521 Baker film applicator width 100mm, gaps 15/30/60/90µm
VF1522 Baker film applicator width 100mm, gaps 30/60/90120µm
VF1523 Baker film applicator width 100mm, gaps 50/100/150/200µm
VF1525 Baker film applicator width 150mm, 4 gaps as desired, max. gap size: 2000µm
VF1526 Baker film applicator width 150mm, gaps 15/30/60/90µm
VF1527 Baker film applicator width 150mm, gaps 30/60/90120µm
VF1528 Baker film applicator width 150mm, gaps 50/100/150/200µm
|
