4-SIDED FILM APPLICATOR (QUADRUPLEX)
VF2167, VF2168, VF2169, VF2170, VF2172, VF2173, VF2174, VF2175
PRODUCT DESCRIPTION

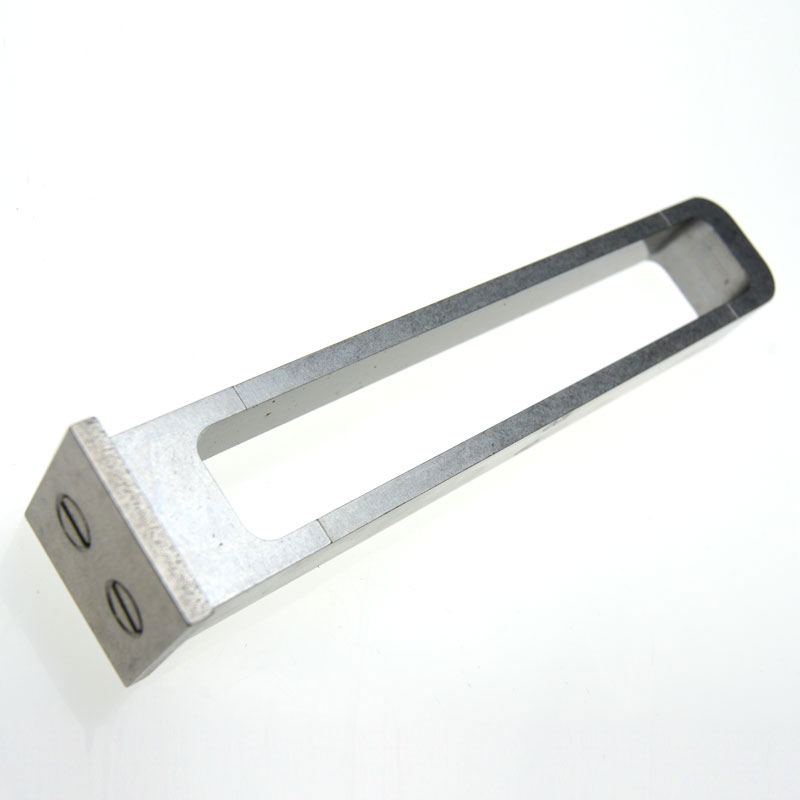

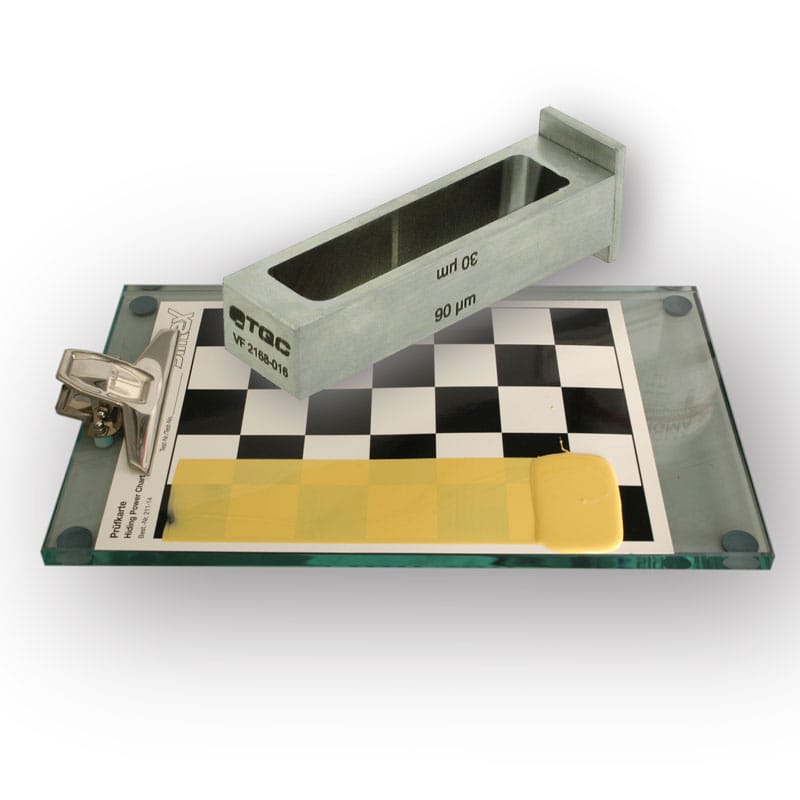

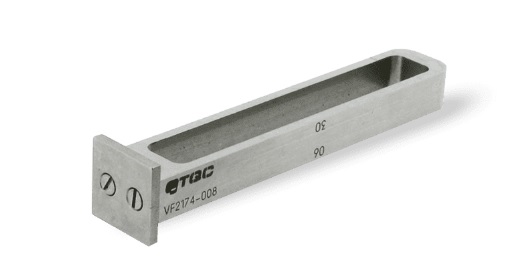

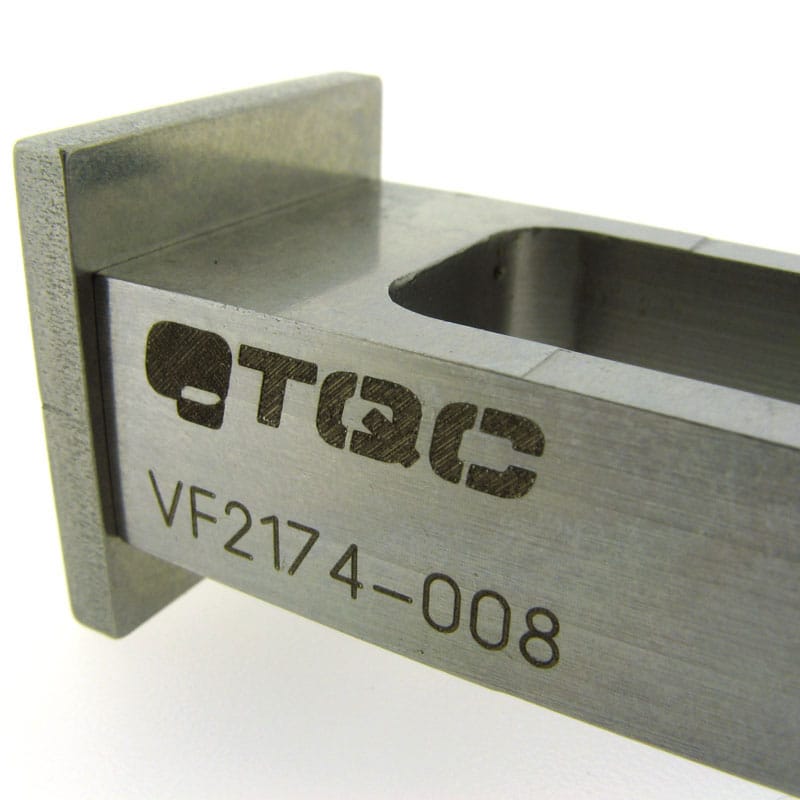

The 4-Sided Film Applicator (Quadruplex) has four application sides for
applying paint films with four different predefined thicknesses, in film width

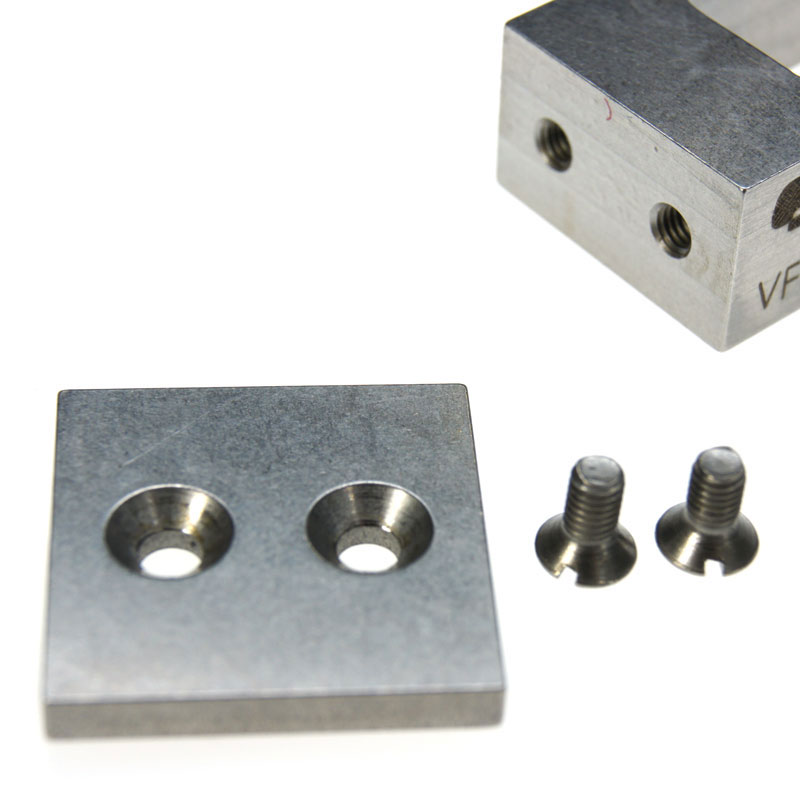

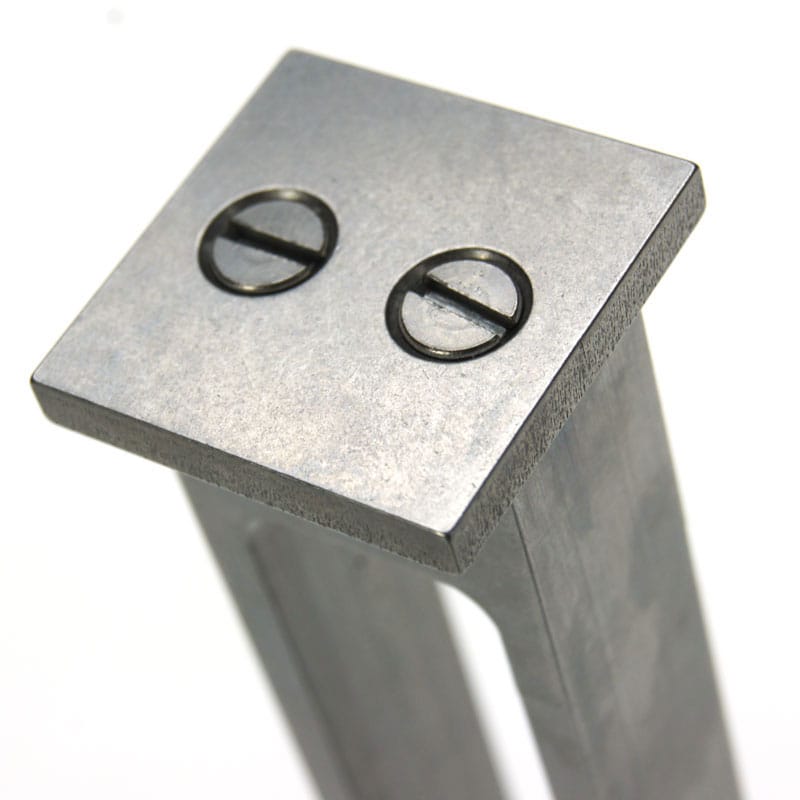

60 or 80 mm. One side of the applicator is supplied with a guidance support
for straight application. This support may be removed as well. The high grade
stainless steel will not be affected by acid or base elements.
BUSINESS
Coating Laboratories, Paint production
STANDARDS
ASTM D 823
SCOPE OF SUPPLY
• 4-Sided Film Applicator (Quadruplex)
• Calibration Certificate
• Protective case
ORDERING INFORMATION
VF2167 4-Sided film applicator (Quadruplex) width 60mm, with 4 gaps as desired, max gap size 2000 µm
VF2168 4-Sided film applicator (Quadruplex) width 60mm, with 4 gaps: 15/ 30/ 60/ 90 µm
VF2169 4-Sided film applicator (Quadruplex) width 60mm, with 4 gaps: 30/ 60/ 90/ 120 µm
VF2170 4-Sided film applicator (Quadruplex) width 60mm, with 4 gaps: 50/ 100/ 150/ 200 µm
VF2172 4-Sided film applicator (Quadruplex) width 80mm, with 4 gaps as desired, max gap size 2000 µm
VF2173 4-Sided film applicator (Quadruplex) width 80mm, with 4 gaps: 15/ 30/ 60/ 90 µm
VF2174 4-Sided film applicator (Quadruplex) width 80mm, with 4 gaps: 30/ 60/ 90/ 120 µm VF2175 4-Sided film
applicator (Quadruplex) width 80mm, with 4 gaps: 50/ 100/ 150/ 200 µm
ACCESSORIES
VF1601 Application Table 380 x 230 mm
VF1602 Application Table 230 x 160 mm
VF2343 Test charts A6, White/Black B+, with optical brightner, 250pcs
VF2344 Test charts A5, White/Black B+, with optical brightner, 250pcs
VF2345 Test charts A4, White/Black B+, with optical brightner, 250pcs
VF2346 Test charts A5, Black/White chequered B+, with optical brightner, 250pcs
VF2347 Test charts A4, Black/White chequered B+, with optical brightner, 250pcs
VF2354 Test charts A3, Black/White chequered B+, with optical brightner, 250pcs
VF2317 Test charts A6, White/Black B-, without optical brightner, 250pcs
VF2319 Test charts A5, White/Black B-, without optical brightner, 250pcs
VF2321 Test charts A4, White/Black B-, without optical brightner, 250pcs
VF2323 Test charts A5, Black/White chequered B-, without optical brightner, 250pcs
VF2325 Test charts A4, Black/White chequered B-, without optical brightner, 250pcs
SPECIFICATIONS
Material : ASAB Stavax ESR medical grade stainless tool steel.Sub Zero Vacuum hardened
(+1756°C to -70°C), hardness HRC 55 (through hardened*)
Accuracy : better than 3 micron
Surface treatment : polished
Overall accuracy : ± 2 µm
Outer dimensions : 75 x 20 x 25 mm / 115 x 20 x 20 mm.
*Through hardening versus Case-hardening or surface hardening.Through-hardening means the metal uniformly is hardened throughout the piece. Case- or surface (face / frame) hardening only hardens the top layer of the metal. Once the top layer is degraded excessive wear and tear will occur on the product limiting its life time and affecting accuracy.
|
|
|
|
|
