Micrometer Film Applicators


MICROMETER FILM APPLICATORS
(SH0335, SH0336, SH1140, SH0340, SH1142,SH3042)

Product Description

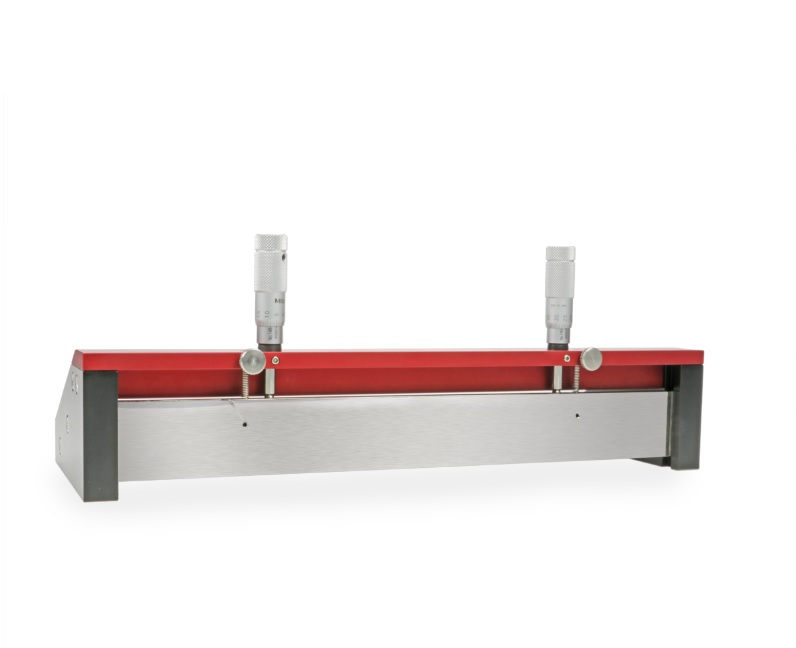

Adjustable Micrometer Film Applicator. The applicator blade can
beadjusted in 10μm increments by means of 2 micrometer heads,
over a gapsize from 0 to 8 mm.

The applicator offers the user flexibility to adjust the optimum gap
size forthe sample application. Ideally suited to research projects
where smallvariations in film thickness need to be evaluated accurately.

Features
• Stainless steel knife blade with precision ground edge
• Wet film thickness adjustable to 8 mm maximum
• Micrometer head accuracy is ± 10 μm
• Ergonomic design facilitates fast accurate draw downs
• Black anodized aluminium frame provides a large paint well

Business
Coating Laboratories, Paint Production

Standards
ASTM D 823

Scope of Supply
Micrometer Film Applicator, 1,5mm Allen key

Specifications
Technical Data

Specifications

Technical Data
Micrometer : ± 10 μm
head accuracy
Gapsize  : 0 - 8 mm
Material : anodized aluminium, through hardened
    medical grade stainless steel
 Dimensions and Weight
 SH0335
 DxHxW :  105 x 100 x 100 mm / 4.1 x 3.9 x 3.9 inch
 Mass  :  670 g / 23.6 oz
 Max. Filmwidth :  75mm/ 2.95 inch

 SH0336
 DxHxW  : 105 x 100 x 125 mm / 4.1 x 3.9 x 4.9 inch
 Mass :  770 g / 27.2 oz
 Max. Filmwidth :  100 mm/ 3.9 inch

 SH1140
 DxHxW :  105 x 100 x 175 mm / 4.1 x 3.9 x 6,9 inch
 Mass :  980 g / 34.5 oz
 Max. Filmwidth :  Filmwidth 150 mm/ 5.9 inch

SH0340
DxHxW  :   105 x 100 x 225 mm / 4.1 x 3.9 x 8,8 inch
Mass  :  1180 g / 41.6 oz
Max. Filmwidth  :  200 mm/ 7.8 inch

 SH1142
DxHxW  :  105 x 100 x 275 mm / 4.1 x 3.9 x 10,8 inch
Mass  : 1395 g / 49.2 oz
Max. Filmwidth  :  250 mm/ 9.8 inch

SH3042
DxHxW :  105 x 100 x 325 mm / 4.1 x 3.9 x 12,8 inch
Mass  :  1600 g / 56.4 oz
Max. Filmwidth  :  300 mm/ 11.8 inch
