PRODUCT DESCRIPTION

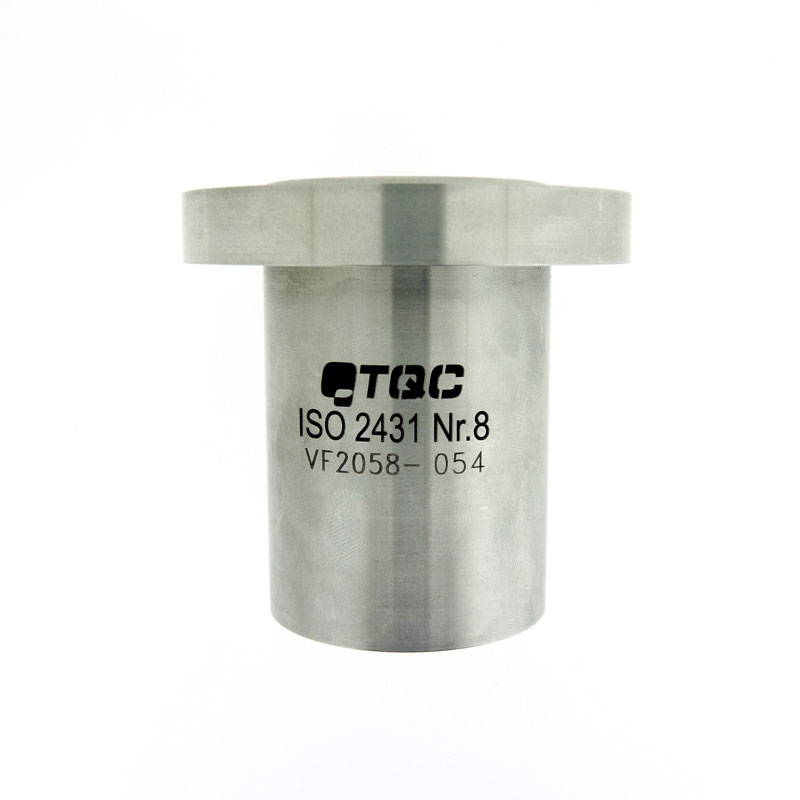

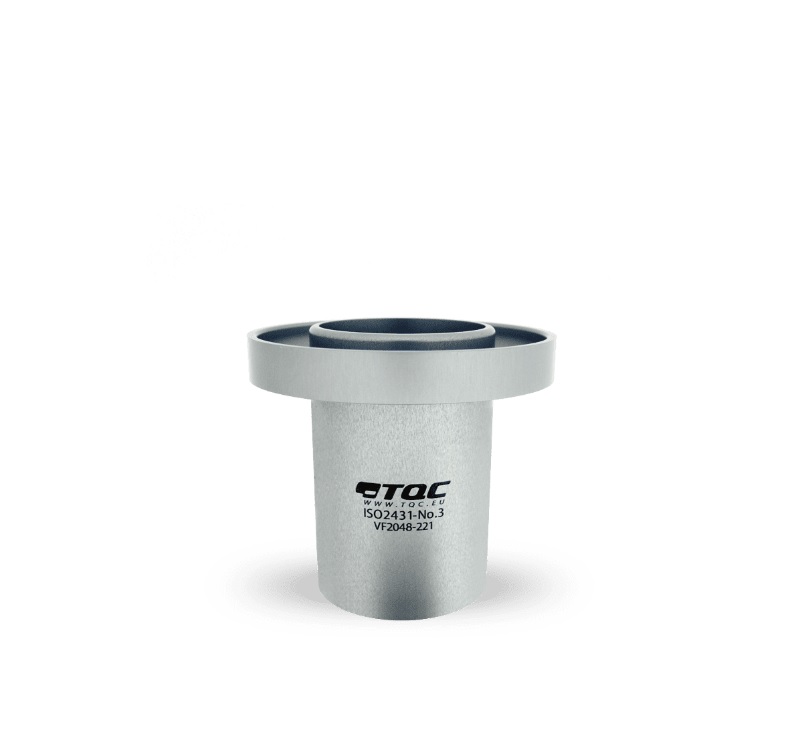

The TQC Viscosity Cup ISO 2431 is a range of
titanium anodized aluminum or stainless steel (SS303) viscosity cups
with fixed stainless steel nozzle (inner cavity).
Laboratory type, to be used with stand, to measure the viscosity of lacquers,
paint and other liquids. According to DIN, EN, ISO 2431.
The process of flow through an orifice can often be used as a relative
measurement and classification of viscosity. This measured kinematic
viscosity is generallyexpressed in seconds of flow time which can be
converted into Centistokes using a viscosity disc calculator.
Viscosity Flow Cups are usedfor measuring the consistency of paints,
varnishes and other similar products.
STANDARDS
DIN, EN, ISO 2431. The ISO 2431 standard replaces all prior national standards
such as AFNOR, ASTM, BS, DIN, NENORM etc.. Look up the appropriate standard
for a correct execution of the test.
FEATURES

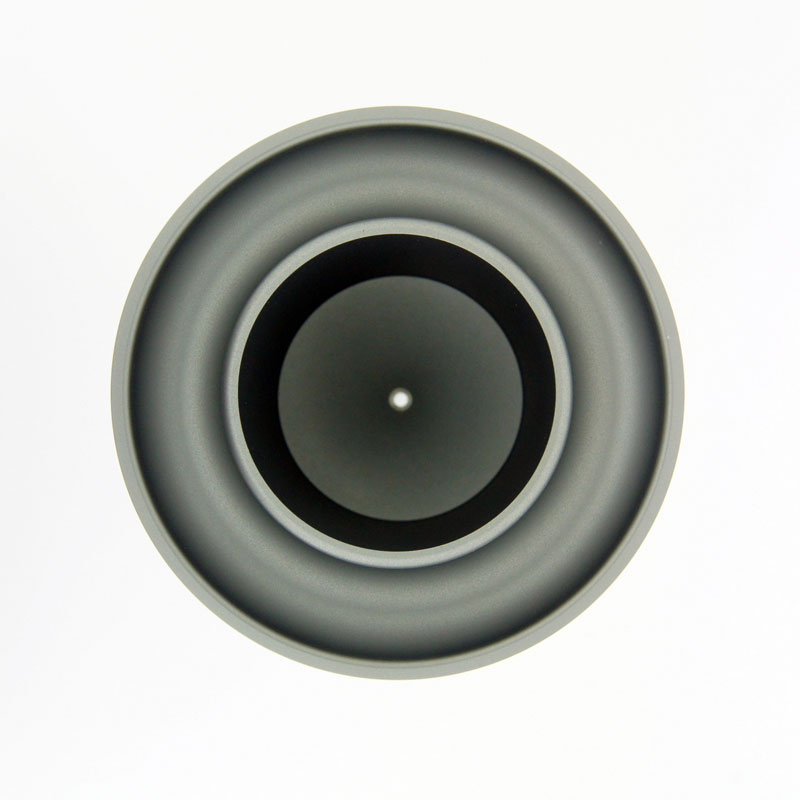

• A relatively deep well surrounding the top of the cup serves to catch any overflow.
• The design of the cup and orifice eliminate hard to clean recesses.
• The outside dimensions have been chosen to support the TQC stands.
• TQC viscosity cups are made under the continuing quality control procedures
• Each cup is provided with an engraved unique serial number.
ORDERING INFORMATION / SPECIFICATIONS
ORDERING INFORMATION Viscosity cup ISO 2431
| Art. No |
Ori |
Ori Ø |
Range |
Material |
Weight |
DxWxH |
| VF2048* |
3 |
3 mm
/ 0,12 inch
|
7-42 cSt |
Aluminium |
337 g
/ 11,89 oz |
92x92x85 mm
/ 3,62x3,62x3,35 inch |
| VF2049* |
4 |
4 mm
/ 0,16 inch
|
34-135 cSt |
Aluminium |
337 g
/ 11,89 oz |
92x92x85 mm
/ 3,62x3,62x3,35 inch
|
| VF2183* |
5 |
5 mm
/ 0,2 inch
|
91-326 cSt |
Aluminium |
337 g
/ 11,89 oz |
92x92x85 mm
/ 3,62x3,62x3,35 inch
|
| VF2050* |
6 |
6 mm
/ 0,24 inch
|
188-684 cSt |
Aluminium |
337 g
/ 11,89 oz |
92x92x85 mm
/ 3,62x3,62x3,35 inch |
| VF2051* |
8 |
8 mm
/ 0,31 inch |
600-2000 cSt |
Aluminium |
337 g
/ 11,89 oz |
92x92x85 mm
/ 3,62x3,62x3,35 inch |
* Calibration certificate optional
SCOPE OF SUPPLY
Each viscosity cup comes with a hard plastic storage case, with protective soft material on the inside.
ACCESSORIES
CL0030 Calibration Certificate (if applicable)
VF2062 Ring stand for viscosity cup
VF2068 TQC Temperature Control Jacket for ISO and AFNOR Viscosity Cup; With tripod
VF2061 Tripod stand Type S40B, stainless steel ring incl. Spirit level
DI0076 Stopwatch Type C510 digital LCD-display, 9h. 59 min. 59,99 sec.
VF2053 Viscosity Conversion Disc
TE0027 TQC precision thermometer
VF2063 Glass plate GP20
|
