The CurveX 4 provides advanced oven temperature data.
Combined with the Ideal Finish Analysis
software, this data logger is vital for any paint curing
oven – providing insights into oven temperature
efficiencies, streamlining operations and reducing
operation costs.

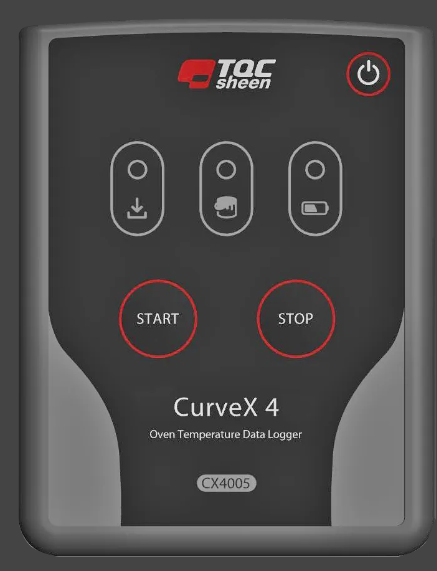

The oven data tracker is fitted with three large buttons
for easy operation and three LED giving power,
paint type, logging and cure information

Memory – batches

The memory of the CurveX 4 can store a total of 160,000 readings.
The memory is divided into 20 memory blocks of 50,000 readings each.

For each new batch, the CurveX 4 will always start at the beginning
of the next memory block,
even if the previous block was only partly used. loggings that take
longer than 50,000 readings
are stopped at reading number 50,000. The maximum number
of batches that can be stored is 20.

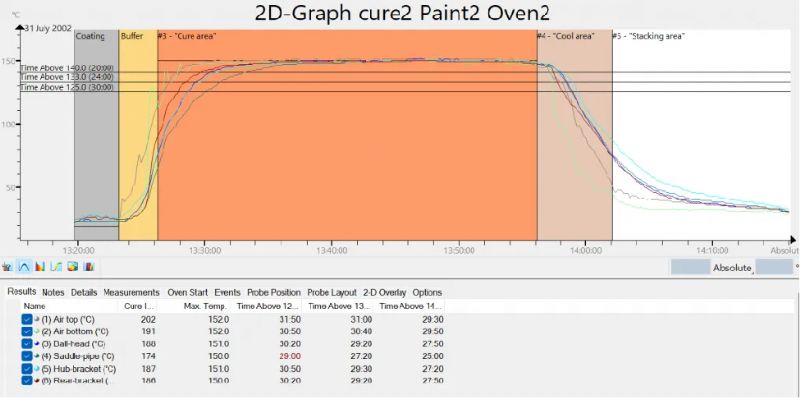

Ideal Finish Analysis software

The included Ideal Finish Analysis software allows you to analyse
the logged temperature data and create detailed reports. Advanced
oven profiling features like cure data analysis,ideal cure and tolerance
bands, together with a wide range of display, report and printing
options, making CurveX oven logger the most flexible
temperature logging solution available.
